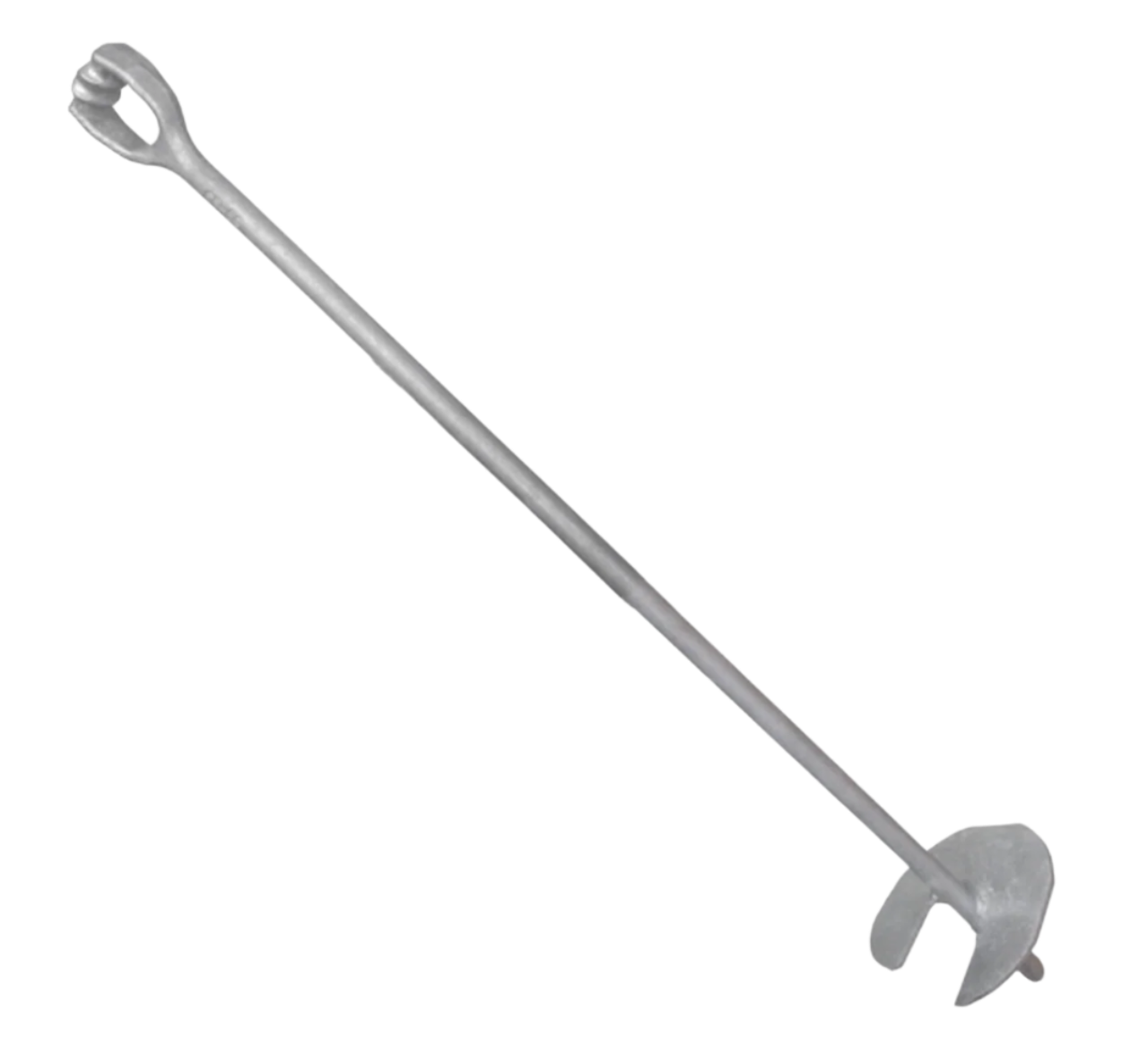

Chance® No-Wrench Screw Anchors may be installed by hand or machine. The Thimbleye® Eye or Tripleye®Eye on the rod has a large opening to admit a turning bar for screwing the anchor down. The eye will also fit into an adapter available from most hole-boring machine manufacturers so the anchor may be power-installed. The No-Wrench Screw Anchor consists of a drop-forged steel Thimbleye Eye or Tripleye Eye rod welded to a steel helix. The entire anchor is hot-dip galvanized for long resistance to rust.

NOTE: If hand installed, holding capacity may be reduced by as much as 10% to 20%. Capacity ratings apply to properly installed anchors only. Failure to install within 5° of alignment with the guy load will significantly lower strength.

Description

Hot dipped galvanized per ASTM A153
Number of Helices: 1
Eyenut Style: Tripleye
No-Wrench Screw Anchors can be installed to a greater depth to reach a firmer soil by using an extension rod.

Sizes

8" X 66" Tripleye

Torque rating: 1000 ft-lbs
Anchor Helix Diameter: 8in
Length: 66 in
Rod Diameter: 1in
Weight: 21.1lbs
Recommended for use on low ropes courses

10" X 66" Tripleye

Torque Rating: 2300 ft-lbs
Anchor Helix Diameter: 10in
Length: 66 in
Rod Diameter:1.25in
Weight: 30.5lbs
Recommended for use on low ropes courses (Standard)

10" X 96" Tripleye

Torque Rating: 2300 ft-lbs
Anchor Helix Diameter: 10in
Length: 96 in
Rod Diameter:1.25in
Weight: 42.2lbs
Recommended for use on high ropes courses (Standard)

14" X 96" Tripleye

Torque Rating: 2300 ft-lbs
Anchor Helix Diameter: 14in
Length: 96 in
Rod Diameter:1.25in
Weight: 55lbs
Recommended for use on high ropes courses
